High-Capacity Single Line Output
Casts 32 precision wall panels in a single line layout, maximizing floor space utilization and boosting overall production volume.
Mould
Compound Wall Mould Manufacturer in India

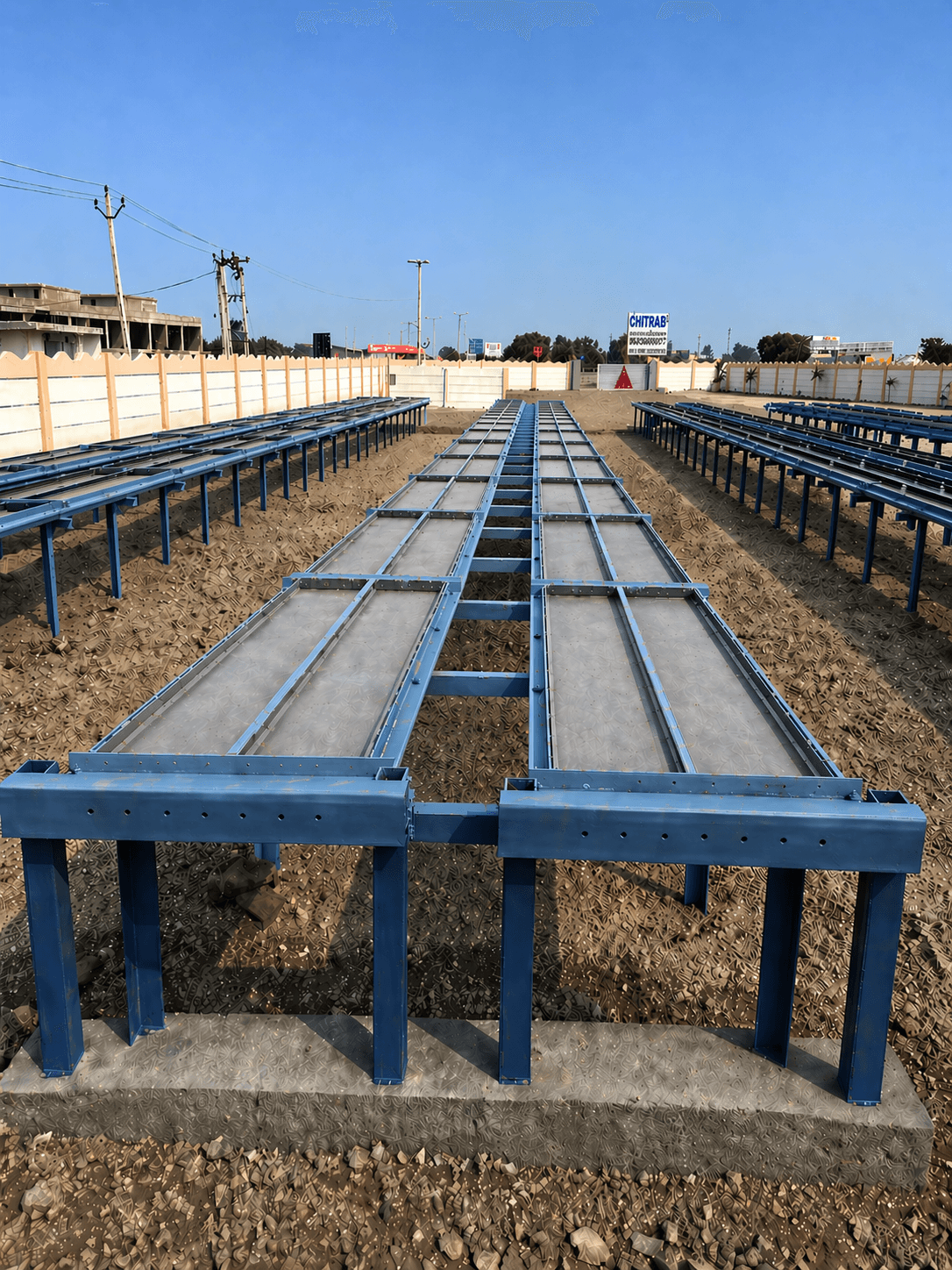

Heavy-Duty 32-Panel Precast Wall Mould Line
Engineered for maximum factory output, our 32-Panel Precast Wall Mould Line delivers exceptional speed, precision and efficiency for precast concrete wall panel production. Built with heavy structural steel sections and engineered for hydraulic compatibility, this high-capacity line enables precast manufacturers to meet large-scale boundary wall supply demands with consistent quality and minimal labour friction.
Compound Wall Mould is also requested as RCC compound wall mould or boundary wall panel casting line. Specify panel length, thickness, daily output and post spacing to compare the correct configuration.
Manufactured by Paras Steel Industries in Gondal, Gujarat, this solution is available for customers across India with custom configuration support based on drawings, dimensions and production requirements.
Starting price
₹80/ kg + GST
Rate per kilogram of fabrication; total mould cost is quoted for the complete configuration. Final price depends on size, design, material, thickness and transport requirement.
Key Features & Benefits
Key features and production benefits
Robust Heavy-Duty Construction
Manufactured using prime quality structural steel plates and channels with rust-inhibiting coating for long-term industrial use.
Hydraulic Automation Compatible
Fully adaptable with hydraulic opening, clamping and demoulding setups to shorten cycle times and save labour costs.
Tailored Engineering
Custom sizes, cavity spacing and panel surface profiles are available to match precise project specifications and architectural designs.
Compound Wall Mould specifications and material build
- Mould Type
- Single-Line Precast Panel Mould Assembly
- Main Support Frame
- 50 x 100 mm Heavy-Duty C-Channel
- Base & Side Plates
- 4 mm - 6 mm High-Tensile Steel Plate
- Outer Reinforcement
- 50 x 50 x 6 mm Structural Steel Angle
- Locking & Alignment Pins
- Solid Bright Steel Bar
- Operational Compatibility
- Manual / Hydraulic System Compatible
Production Capacity & Dimensions
- Production Line Output
- 32 Panels per Line / Casting Cycle
- Standard Panel Dimensions
- 7 ft x 1 ft (2130 mm x 305 mm)
- Panel Thickness Range
- 45 mm - 50 mm
Primary Applications
Industrial & Commercial Infrastructure
Factory compound walls, industrial park boundaries, warehouse facilities and commercial complexes.
Public Works & Highways
Roadside sound barriers, highway median dividers, public school fencing and hospital enclosures.
Agricultural & Property Boundaries
Farmhouse enclosures, garden fencing, plot boundary walls and residential housing developments.
Designed for dependable production
High-output 32-panel precast wall mould line built with heavy-duty steel channels and plates, hydraulic compatible for fast boundary panel manufacturing. Dimensions and configuration can be discussed based on your project requirement.
Compound Wall Mould applications
- Residential boundary walls
- Industrial perimeter walls
- Precast fencing projects
Why Paras Steel Industries
Built around your precast production requirement
Custom engineering support
Specify panel length, thickness, daily output and post spacing. Share your drawing and output target to discuss a suitable configuration.
Precision steel fabrication
Our fabrication process focuses on dependable fit, structural strength and repeatable production performance.
Compound Wall Mould price and quotation
Compare the complete quoted configuration, handling requirements and transport cost. Contact us with your drawing and delivery location for an itemised quotation.
Compound Wall Mould: sizes, cost and supply questions
What should I specify when ordering a compound wall mould?
Specify panel length, thickness, daily output and post spacing. Paras Steel Industries manufactures this equipment in Gondal, Gujarat. Share your approved drawing and production target for configuration review.
Which sizes or capacities are listed for Compound Wall Mould?
Production Line Output: 32 Panels per Line / Casting Cycle; Standard Panel Dimensions: 7 ft x 1 ft (2130 mm x 305 mm); Panel Thickness Range: 45 mm - 50 mm These are listed configurations; confirm dimensions and suitability in the quotation before ordering.
What is the price of Compound Wall Mould in India?
The listed starting rate is ₹80/ kg + GST. This is a fabrication rate per kilogram, not the total price of a complete mould. Final cost depends on panel length, thickness, daily output and post spacing, material and transport. Request a quotation for your exact specification.
Which materials and build details are specified?
Base & Side Plates: 4 mm - 6 mm High-Tensile Steel Plate Confirm the final build, finish and handling requirements against your order drawing.
Can Paras supply a custom compound wall mould from Gujarat to my site?
Custom requirements can be reviewed using your drawing. Supply is available across India from Gondal; share your delivery location, quantity and required date so transport, lead time and configuration can be quoted.
