Fully Customizable Deck & Load Dimensions
Custom-engineered in bed sizes from compact 5 ft x 3 ft to 14 ft+ heavy beds, helping it navigate tight yard aisles and handle specific precast product lengths.
Machinery

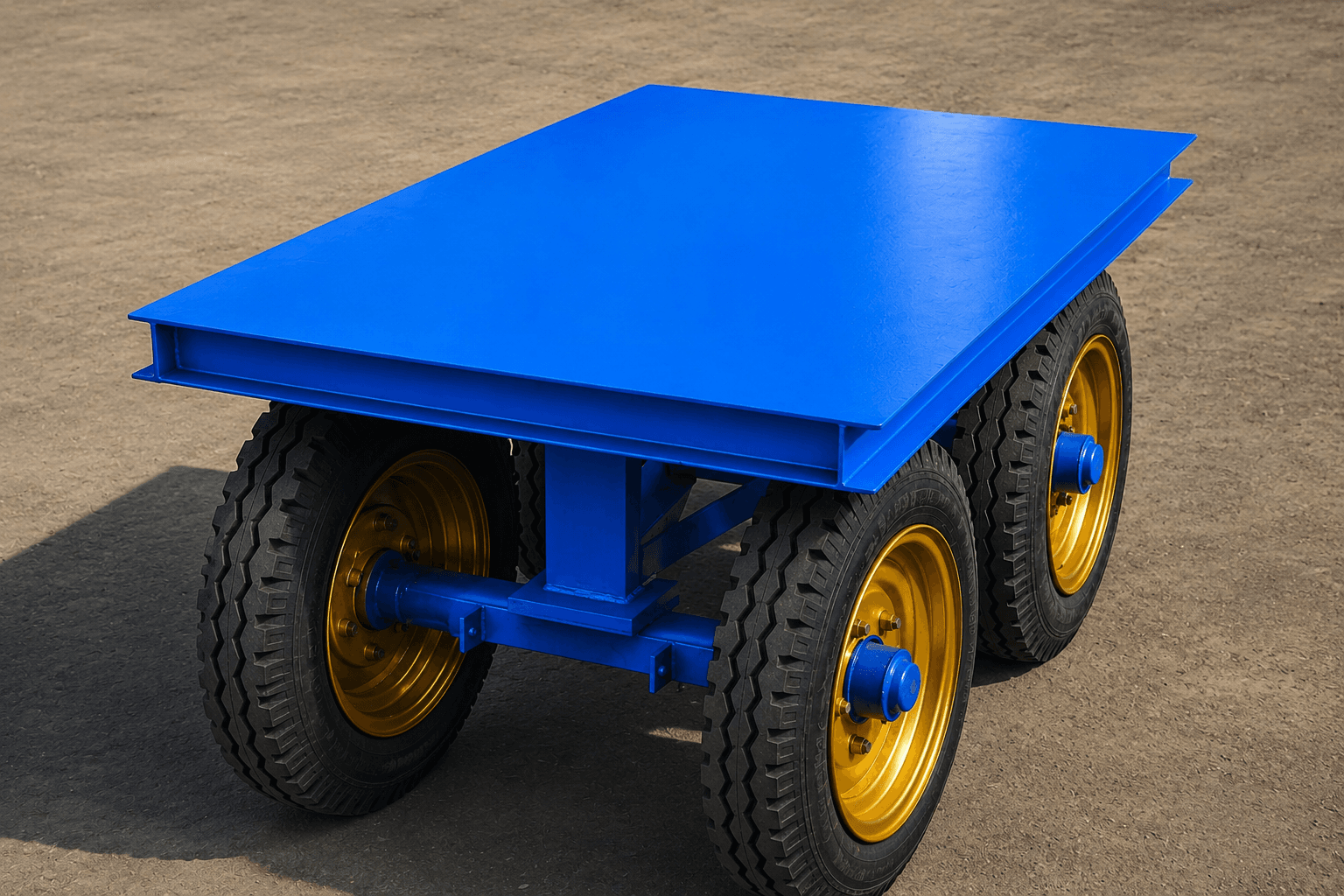

Precast Concrete Panel Shifting Trolley (Yard Material Transport Trailer)
Engineered for rugged material handling in precast concrete casting yards and construction sites, our Precast Concrete Panel Shifting Trolley delivers safe and efficient transport of cured wall panels, heavy columns, box culverts and steel moulds. Built from IS 2062 heavy ISMC structural channel grids with chequered steel decks and 360-degree turntable steering, this heavy-duty yard trailer is fully customizable in dimensions, deck thickness and load capacity up to 15+ tons.
Key Features & Benefits
Built for high-output panel production
Heavy-Duty Turntable Swivel Steering
A front kingpin turntable assembly enables tight turning radii inside crowded casting beds and factory storage yards.
Rigid Anti-Sag Reinforced Chassis
Heavy ISMC main rails and cross-stiffeners reduce chassis twisting and bed sagging under concentrated heavy concrete panel stacks.
Off-Road Heavy-Duty Pneumatic Tyres
High-capacity pneumatic truck or tractor tyres move reliably across gravel, unpaved yard soil and uneven site surfaces.
Universal Towing Hitch Connection
Heavy-duty tow bar hitch connects to standard yard tractors, forklifts, loaders and suitable yard utility vehicles.
Technical Specifications & Material Build
- Frame Category
- Heavy-Duty structural steel flatbed trailer chassis
- Material Grade
- High-Grade Mild Steel (IS 2062 Structural Grade)
- Main Chassis
- Heavy ISMC channels (125 mm / 150 mm / 200 mm) reinforced grid
- Top Platform Deck
- 5 mm / 6 mm / 8 mm chequered or smooth mild steel plate
- Axle Assembly
- Solid heavy-duty square or round steel axles with high-capacity bearings
- Steering System
- Front turntable / kingpin swivel steering assembly
- Towing Interface
- Heavy-duty front tow bar hitch
- Protective Coating
- Heavy anti-rust epoxy primer with industrial blue epoxy finish paint
- Wheel Options
- 7.50-16 / 8.25-16 / 9.00-20 pneumatic truck or tractor tyres, or solid rubber tyres
- Customization
- Custom bed dimensions, plate thickness and load capacities
Production Capacity & Dimensions
- Compact Yard Model
- 2 ton - 3 ton | 5 ft x 3 ft platform | 4 pneumatic or solid wheels | tractor, forklift or manual tow bar
- Yard Standard Model
- 3 ton - 5 ton | 4 ft x 8 ft or 5 ft x 10 ft platform | 7.50-16 pneumatic tyres | tractor / forklift tow bar
- Heavy Precast Yard Model
- 5 ton - 8 ton | 5 ft x 12 ft or 6 ft x 12 ft platform | 8.25-16 / ADV tyres | double-bearing turntable
- Extra Heavy Industrial Model
- 10 ton - 15 ton+ | 6 ft x 14 ft or custom modular deck | 9.00-20 truck or solid tyres | dual heavy axles
- Tailored Options
- Custom platform sizes, 5 mm - 12 mm deck plates, removable side poles, hydraulic tipping or A-frame panel support racks.
Primary Applications
Precast Wall & Post Handling
Boundary wall panels, columns and fencing-post transport.
Heavy Structural Precast Transport
Precast slabs, beams, footings and box culvert segment shifting.
Yard Logistics & Stacking
Moving cured products from casting beds to stacking bays and loading zones.
Material & Concrete Distribution
Wet concrete buckets, steel formwork moulds and reinforcement cage transport.
On-Site Construction Utility
Heavy equipment hauling and raw material movement on civil construction sites.
Designed for dependable production
Heavy-duty precast concrete panel shifting trolley and yard transport trailer in IS 2062 steel, with turntable steering, custom deck sizes and up to 15+ ton capacity. Dimensions and configuration can be discussed based on your project requirement.
Applications
- Precast panel movement
- Factory material handling
- Production line support
Frequently asked questions
Can this mould be made in custom dimensions?
Share your drawing or requirement with us. Our team will guide you on available configuration options.
