RCC Frames and Bench Moulds: Rebates, Cores and Set Details

RCC chaukhat is a common buying term for concrete frames. Door frames and window frames require separate opening, rebate and fixing details. A nominal opening width and height do not describe the whole mould: include the frame section and the concrete faces that must form accurately.

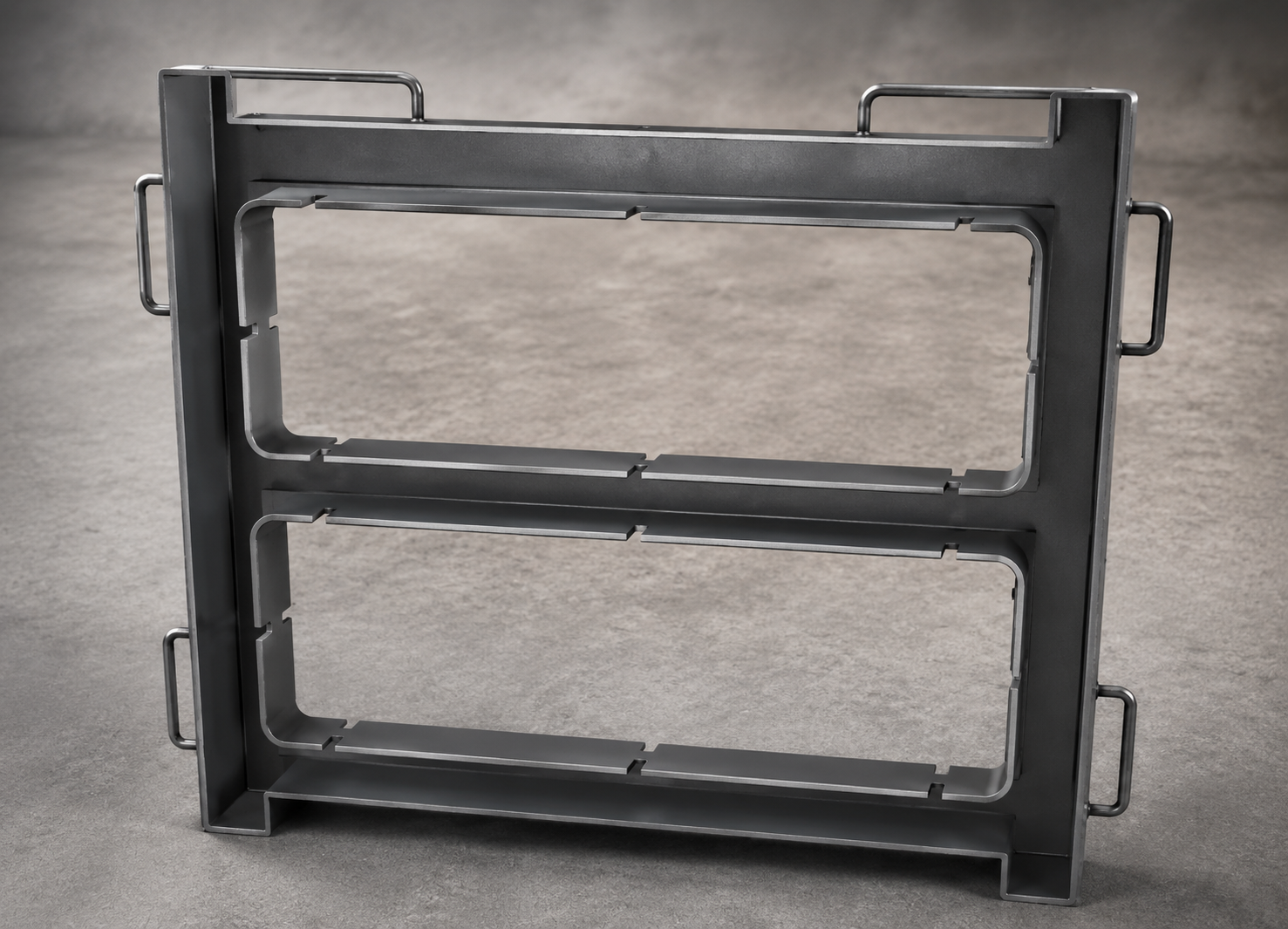

Window drawings should show the grill or glass-track arrangement where required. Door drawings should identify the rebate configuration and hinge fixing detail. Provide the approved concrete frame drawing rather than relying on the dimensions of a finished shutter or window alone.

Discuss tapered or removable cores and the access needed to release the frame. Rebate depth and embedded features can affect the release sequence. Confirm how the frame is supported after demoulding and which surfaces need particular attention during cleaning.

Review the reinforcement cage and any embedded fixing positions before fabrication. Changes after the mould is made may require different inserts or steelwork. Ask the supplier to identify which parts are replaceable for different openings and which changes need another mould.

A concrete bench mould set can include the side frames, seat and backrest. Confirm the number of each component, their dimensions and how they connect. Compare complete sets with the same drawing instead of treating every bench mould enquiry as a single piece of equipment.

Include surface finish, edge details and handling requirements. The mould supplies the casting geometry; the concrete design, reinforcement and installed assembly still need project review. Confirm that the proposed components fit together before approving the mould set.

Provide the loaded mould weight and footprint when selecting a vibrating table. Check motor and power requirements against the plant supply. The suitability of a table depends on the actual loaded configuration rather than only the unloaded size of the mould.

Door frame and manhole cover prices are listed per set, window frame fabrication is listed per kilogram, and a bench has its own starting set configuration. Ask for the complete quotation, including fixtures, GST and transport, for the exact component drawings.
