How a Concrete Vibrator Table Improves Precast Product Quality

How a Concrete Vibrator Table Improves Precast Product Quality

Precast concrete production depends on more than just a good mould and concrete mix. Proper compaction is also essential for producing strong, dense and smooth-finish concrete products.

A concrete vibrator table is widely used in precast units to compact fresh concrete inside moulds. It creates controlled vibration that helps the concrete settle properly, reduces trapped air and improves the overall finish of the precast product.

Vibrator tables can be used for wall panels, boundary wall products, poles, U drains, cable trenches, footings, manhole covers, blocks and many other precast concrete components.

What Is a Concrete Vibrator Table?

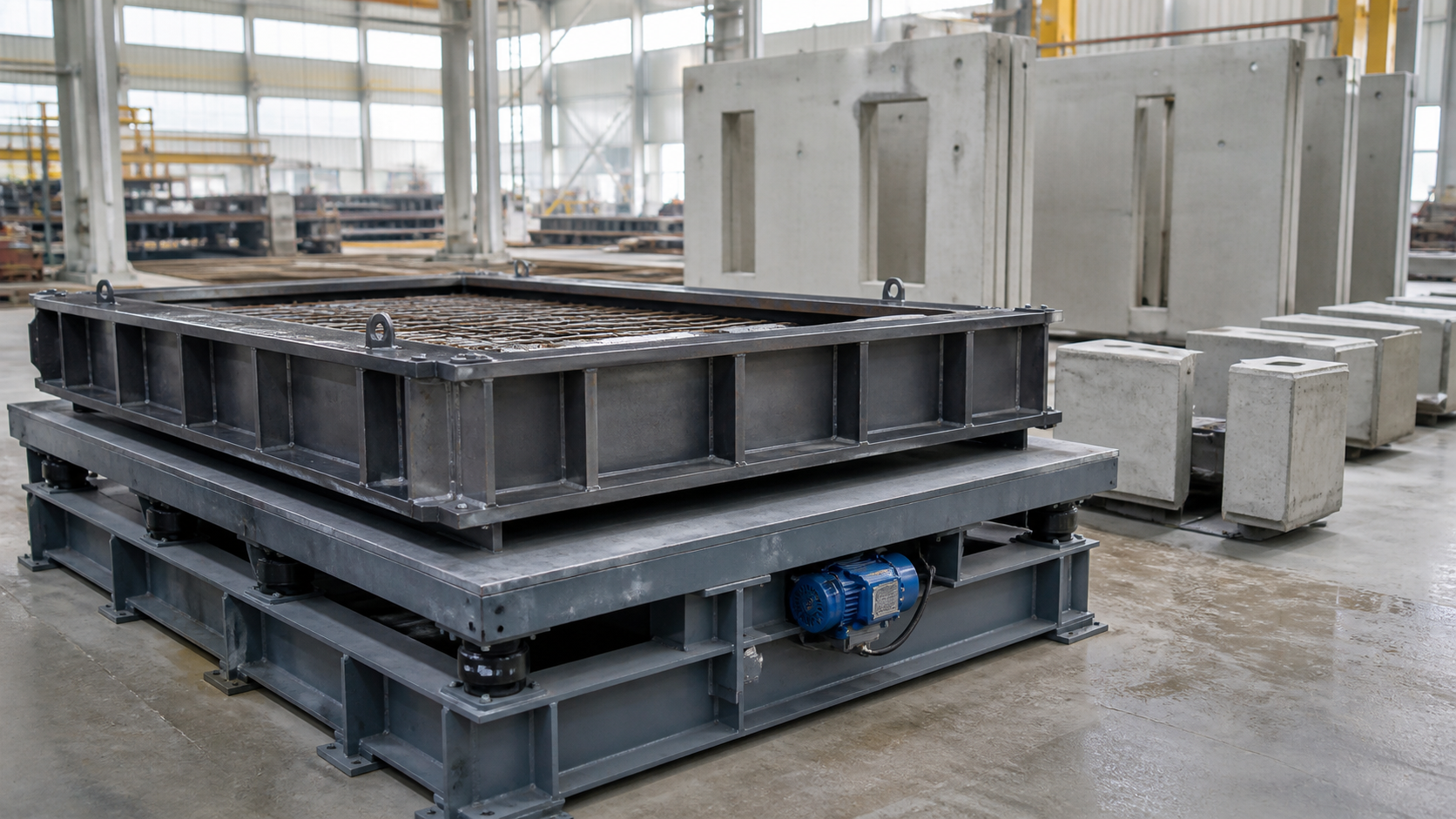

A concrete vibrator table is a heavy-duty platform that vibrates while a mould containing fresh concrete is placed on it. The vibration helps concrete particles settle into the mould and reduces empty spaces inside the cast product.

The table is generally used during the concrete casting stage. Once the mould is filled with the required concrete, controlled vibration is applied for the appropriate duration.

The correct vibration time depends on the mould size, concrete mix, product shape and production requirement.

Why Concrete Compaction Matters

Fresh concrete can contain trapped air pockets. If the concrete is not compacted properly, the final product may have uneven surfaces, honeycombing, weak edges or visible voids.

Good compaction helps create a denser concrete structure. It also helps the concrete reach corners, edges and detailed sections of the mould.

For precast manufacturers, consistent compaction can improve repeatability from one cast to the next.

How a Vibrator Table Improves Surface Finish

A smooth surface finish is important for both appearance and product quality. During vibration, concrete settles more evenly against the mould surface.

This can help improve:

Surface smoothness Edge definition Corner filling Pattern clarity Uniform appearance Mould detail reproduction

For decorative wall panels and embossed design panels, proper vibration can help the concrete capture the mould pattern more accurately.

How a Vibrator Table Helps Reduce Air Voids

Air voids can create weak spots and rough patches in a precast concrete product. A vibrator table helps trapped air move upward and escape from the concrete mix.

This can reduce the possibility of:

Honeycombing Surface holes Uneven texture Weak corners Poor pattern finish Void marks

However, vibration should be controlled. Too little vibration may leave air pockets, while excessive vibration can cause material separation in some concrete mixes.

Improves Product Density and Consistency

When concrete is compacted properly, the mix settles more uniformly inside the mould. This helps support a consistent density throughout the product.

For precast units producing multiple products every day, consistency is important. A well-designed vibrator table can help maintain similar compaction results across repeated casting cycles.

This is especially useful for products that need accurate dimensions and smooth surfaces, such as U drains, wall panels, poles, footings and precast covers.

Useful for Different Precast Moulds

Concrete vibrator tables can support a wide range of mould types.

Common applications include:

Compound Wall Moulds Design Boundary Wall Moulds Wall Panel Moulds Fencing Pole Moulds Column Pole Moulds U Drain Moulds Cable Trench Moulds Footing Moulds Manhole Cover Moulds Garden Bench Moulds

The vibrator table size and load capacity should match the mould dimensions and expected production weight.

Important Factors When Choosing a Vibrator Table

Before purchasing a concrete vibrator table, consider:

Table size Load capacity Mould size Expected product weight Vibration motor arrangement Production quantity Available electrical supply Factory floor space Material handling arrangement

A table that is too small for the mould can create uneven vibration. A properly sized table supports stable mould placement and better compaction.

Use the Correct Vibration Time

There is no single vibration time for every precast product. The operator should adjust the process based on the concrete mix and the mould design.

The right vibration should help the concrete settle without causing excessive separation of cement paste, aggregate or water.

A production trial can help determine the suitable vibration duration for a specific product. Consistent operating practice is important for maintaining uniform quality.

Vibrator Table and Mould Design Work Together

A good vibrator table performs best when the mould is also properly designed and supported.

The mould should have:

Strong base frame Rigid structure Proper clamps Accurate alignment Suitable thickness Secure lifting arrangement Smooth internal surface

Heavy-duty iron moulds are commonly used for repeated precast production because they can support concrete pressure and controlled vibration during casting.

Maintenance Tips for a Vibrator Table

Regular maintenance improves machine reliability and production safety.

Check these points regularly:

Motor mounting Electrical connections Table frame Rubber mounts or springs Fasteners and bolts Platform level Unusual noise or vibration Load capacity condition

Keep the table clean and avoid allowing concrete residue to build up on the platform.

Conclusion

A concrete vibrator table is an important machine for improving precast product quality. It helps compact fresh concrete, reduce air pockets, improve surface finish and support consistent production.

For best results, use the correct vibration time, maintain the machine regularly and match the vibrator table size with your mould and product requirement.

Paras Steel Industries supplies concrete vibrator tables, precast moulds and production machinery for precast concrete units across India. Custom machine sizes and mould solutions are available according to your production requirement.
